Encoder Model HR12 provides an improved feedback solution in applications typically using modular encoders. The HR12 provides feedback capabilities where the others leave off – high line count resolution',' high temperature operation',' rugged bearing construction',' large tolerance to radial and axial shaft play',' commutation for brushless motor control',' with a strain relieved cable. Quadrature output with index pulse and three-phase commutation provided with industrial 26C31 differential drivers. A flexible member allows for much greater tail shaft run out and TIR than can be tolerated by modular encoder designs',' plus it provides 30 degrees of rotation for commutation timing.

Quantum Devices Model LP12 optical encoder provides an improved feedback solution in applications typically using modular encoders. With an over all height of less than an inch and the stability of a bearing encoder design',' the model LP12 can provide significant performance upgrades in applications limited by traditional modular encoder solutions. Outputs consist of a quadrature with index pulse (Incremental or Sinusoidal) and three-phase commutation. A flexible member allows for much greater tail shaft run out and TIR than can be tolerated by modular encoder designs',' plus it provides 30 degrees of rotation for commutation timing.

Quantum Devices Model QDH20 provides an improved feedback solution in applications typically using a standard size 20 package. The QDH20 provides encoder feedback in standard industrial mounting configurations with superb mechanical and environmental protection. Outputs consist of a quadrature A & B with reference pulse Z as a standard feature. The output can be configured with either the 5 to 26 volt OL7272 line driver or open collector outputs. The QDH20 features two heavy-duty bearings holding the output shaft',' and two more bearings along with an integral flexible spring mount to isolate the working pieces of the encoder from mechanical stresses.

Quantum Devices Model QM22 is a high performance',' small diameter modular encoder ideal for high volume OEM applications and priced competitively for all sizes of motion control projects. The QM22’s versatile electrical configurations include lines counts up to 2500* and several commutation options*. The QM22’s patent lock-n-twist mechanism simplifies installation; saving production time and money. Perfect for NEMA 11 BLDC servo applications.

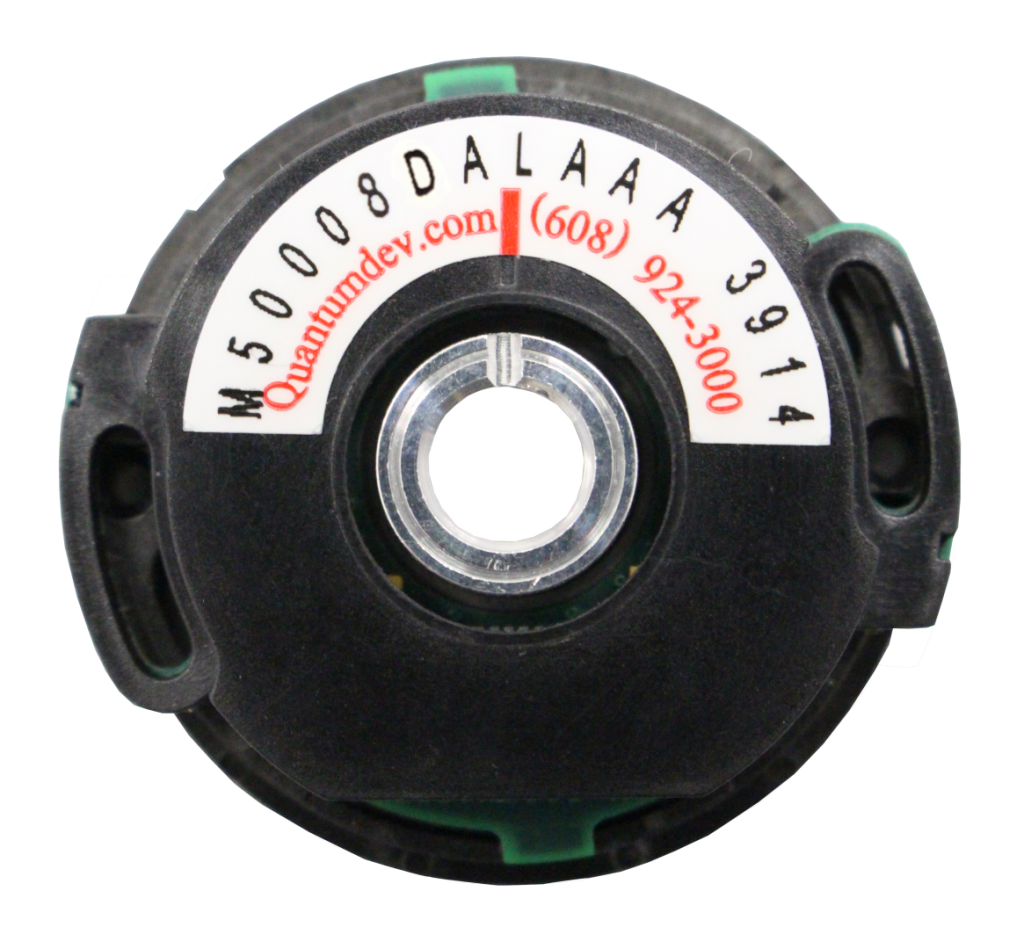

The Quantum Devices EZ-Comm system is the fastest and most economical way to align an optical encoder’s commutation channels to a motor. EZ-Comm was designed to reduce assembly cost for high volume manufacturing. By eliminating multiple steps from the typical timing of an encoder and motor',' EZ-Comm saves manufacturing time and reduces assembly cost. EZ-Comm is integrated into the high performance',' low profile modular design of the QM35. QM35 EZ-Comm is ideal for high volume OEM applications and priced competitively for all sizes of motion control projects. As simple as a push of a button',' QM35 EZ-Comm is the newest and simplest way to commutate your BLDC motors.

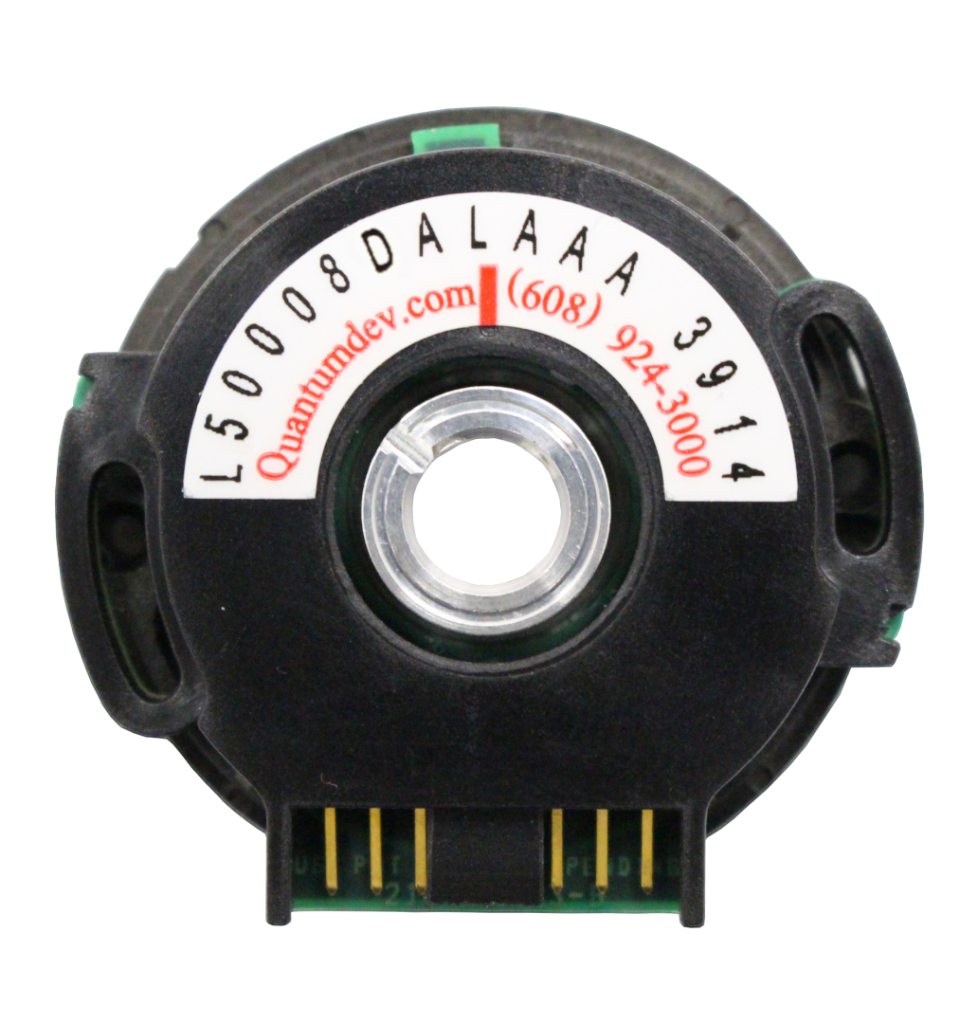

The Quantum Devices EZ-Comm system is the fastest and most economical way to align an optical encoder’s commutation channels to a motor. EZ-Comm was designed to reduce assembly cost for high volume manufacturing. By eliminating multiple steps from the typical timing of an encoder and motor',' EZ-Comm saves manufacturing time and reduces assembly cost. EZ-Comm is integrated into the high performance',' low profile modular design of the QML35. QML35 EZ-Comm is ideal for high volume OEM applications and priced competitively for all sizes of motion control projects. As simple as a push of a button',' EZ-Comm is the newest and simplest way to commutate your BLDC motors.

Quantum Devices Model QR110 is designed to provide high resolution digital feedback in an industrial standard size 11 mounting format. Quadrature with reference pulse output format',' resolutions up to 2048 lines per revolution (direct read) and a variety of electrical options are easily capable of satisfying the most demanding feedback application. The QR110 provides the user digital position information',' directly from the feedback device',' without the external R to D converters that are typically used with resolver feedback. Converting from size 11 resolver to encoder feedback is easily accomplished with the QR110 without the need for costly mounting modification to existing designs. QDI’s unique optical sensing system embodies a much simplified encoder design',' which ultimately results in longer service life and less down time due to feedback device failure. The encoder housing is constructed of a conductive carbon fiber composite that provides the EMI shielding of an all-metal housing and performance of a lightweight robust assembly.

Quantum Devices Model QR145 Optical Incremental Encoder provides an improved feedback solution in applications typically using modular encoders. With an overall height of only 0.87” and the stability of a bearing encoder design',' the model QR145 Optical Incremental Encoder can provide significant performance upgrades in applications limited by traditional modular encoder solutions. Outputs consist of a quadrature with reference pulse and three-phase commutation',' which can be configured with either the industrial standard 5 volt RS-422 Line Driver or the 5 to 26 volt OL7272 line driver. A flexible spring mount allows for much greater tail shaft run out than can be tolerated by modular encoder designs',' plus it provides 30 degrees of rotation for commutation timing. A housing constructed of conductive carbon fiber composite provides the EMI shielding of an all metal housing and the performance of a lightweight robust assembly. An optional IP66 housing is available at a fraction of the cost of competitors’ comparable sealed encoders.

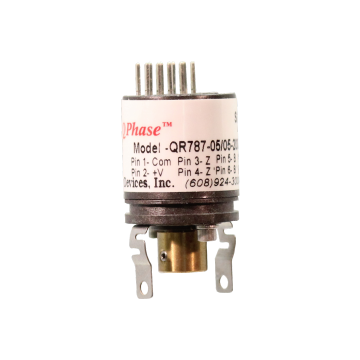

Quantum Devices Model QR787 blind bore version provides a high performance',' high resolution digital feedback solution for small motor applications. The QR787 model provides the resolution of larger encoder packages',' but in a package only 20 mm (0.787″) in diameter. Outputs can be configured in either single ended',' 5 volt RS-422 differential or with high voltage differential line driver. QDI’s patented sensing scheme embodies a much simplified encoder design',' which ultimately results in longer service life and less downtime due to feedback device failure. The encoder housing is constructed of a conductive carbon fiber composite that provides the EMI shielding of an all-metal housing and performance of a lightweight robust assembly.

Quantum Devices Model QR787 is intended for applications requiring high performance',' high-resolution digital feedback in a very small package. The model QR787 provides the resolution of larger encoder packages but in a package only 20 mm (0.787″) in diameter. Outputs can be configured in either single ended',' 5 volt RS-422 differential or with high voltage differential line driver. QDI’s patented sensing scheme embodies a much simplified encoder design',' which ultimately results in longer service life and less downtime due to feedback device failure. The encoder housing is constructed of a conductive carbon fiber composite that provides the EMI shielding of an all-metal housing and performance of a lightweight robust assembly.
